Cotterman Bolt-On Modular Cage - 4' Bottom Section

Cotterman Bolt-On Modular Cage - 4' Bottom Section

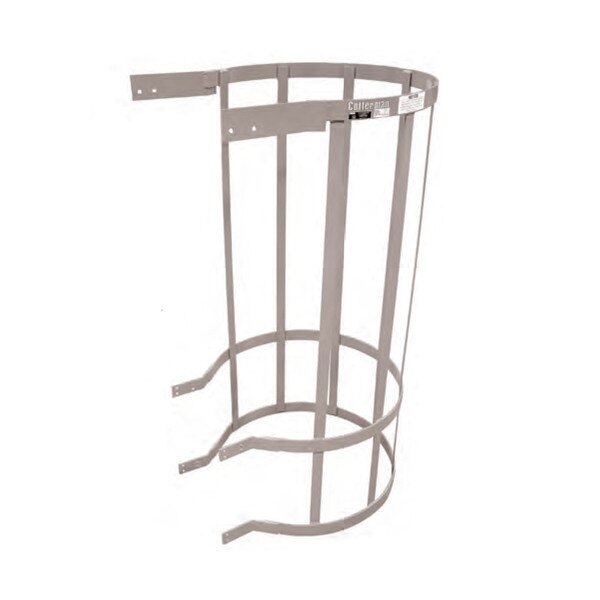

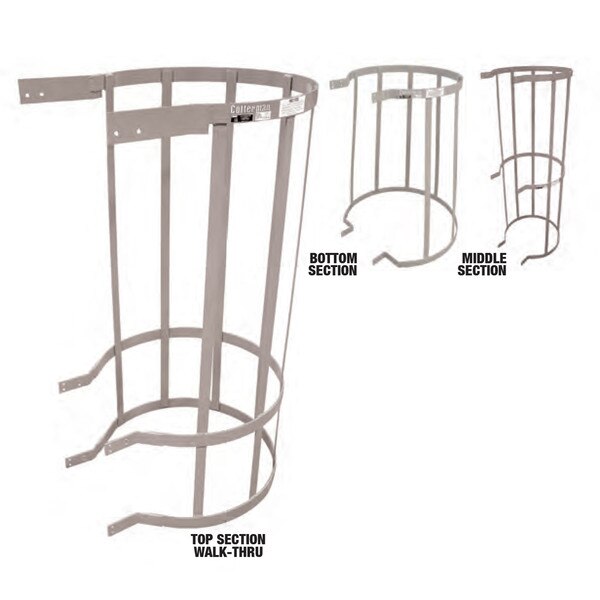

Gray powder-coated paint finish Modular vertical ladder cages help make existing fixed ladder up to 20" wide OSHA compliant. Each safety cage ladder comes in top, middle, and bottom sections. The 4BC is a 4' bottom section that is bolted on. Top and middle sections have a 29" inside diameter; bottom section flares to a 34" inside diameter for easy entry.

To determine proper length, the cage should begin 7 ft. to 8 ft. from the floor and extend 42" above the landing surface (except for roof hatches). 1 top or middle section and 1 bottom section is required for a complete assembly. Meet applicable OSHA and ANSI standards.

Features:

• 34" inside diameter for easy entry
• 4' bottom section, bolt on

Product Code: 4BC
