Cotterman Crossover Bridge - 5 Step - Aluminum - 36" W - A3 Tread

(0) No Reviews yet
$3,323.88
SKU: 5SCA36A3
$3,323.88

Cotterman Color Choice

Cotterman Crossover Bridge - 5 Step - Aluminum - 36" W - A3 Tread

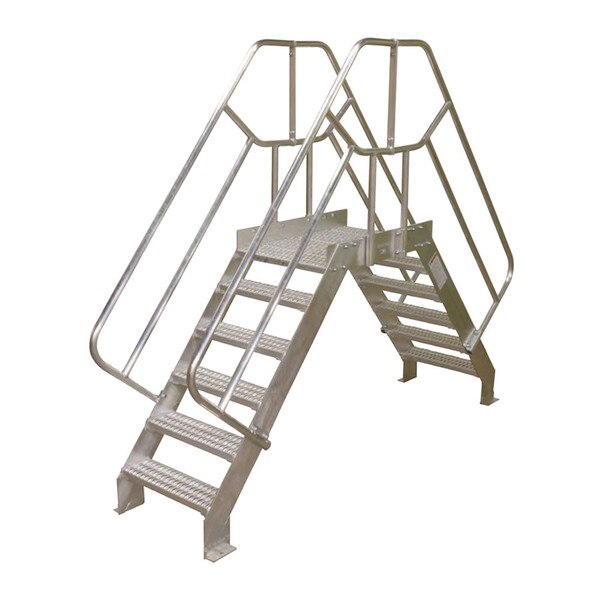

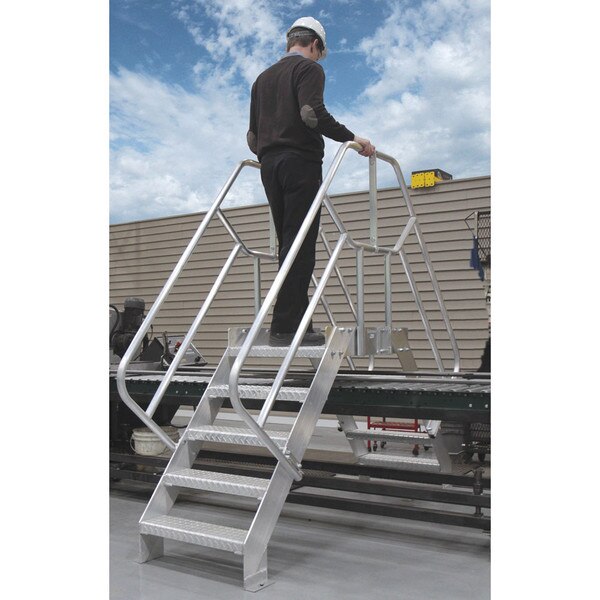

Cotterman® Crossover Bridges provide safe walkways over a variety of obstacles such as conveyors, machines, and pipes. This Aluminum Crossover Bridge is 36" W. This Crossover Bridge has a height of 5 steps and features A3 Serrated Tread.


Features

  • 50° climb angle, with 8" step rise
  • 42" Handrails, constructed of 1-1/2" diameter round tube
  • Stair sections have 24-1/8" wide by 4-7/8" deep steps. The top platform includes a 4" high toe board on each side
  • Legs have floor mounting plate with 5/8" diameter hole
  • Ships unassembled
  • Aluminum finish

Specifications:

  • Height: 5 Steps

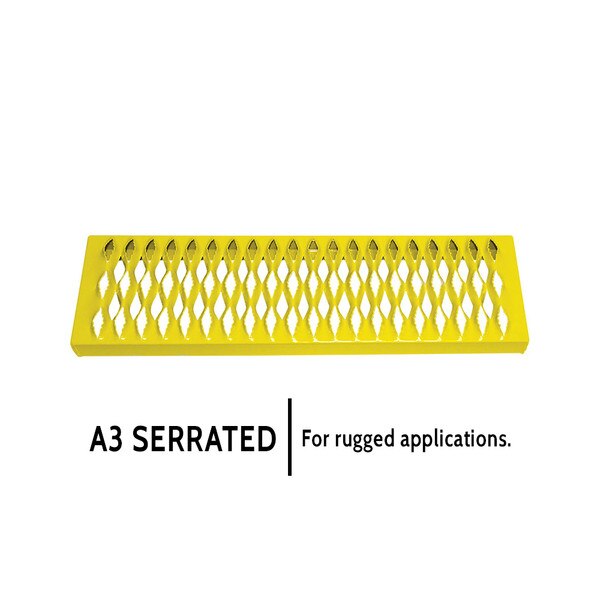

  • Step type: Serrated (A3) - Open Step Premium Serrated Tread. For rugged applications
  • Load Rating: 500 lbs
  • Meets applicable OSHA and ANSI standards.

Product Code: 5SCA36A3
