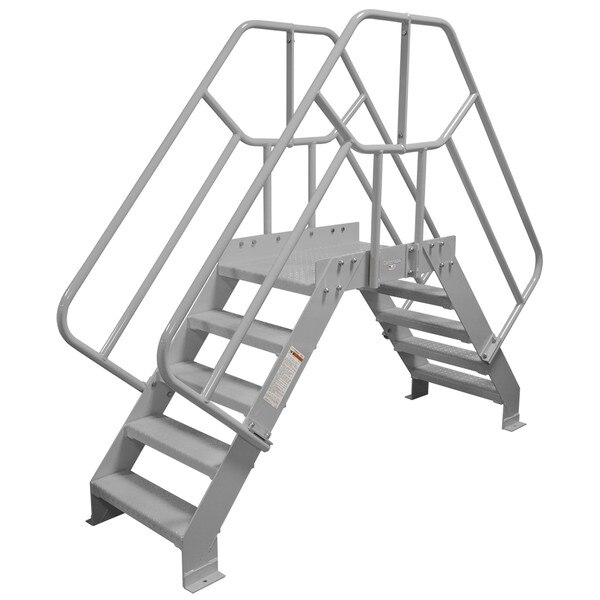

Cotterman Crossover Bridge - 7 Step - Steel - 36" W - A3 Tread

Cotterman Crossover Bridge - 7 Step - Steel - 36" W - A3 Tread

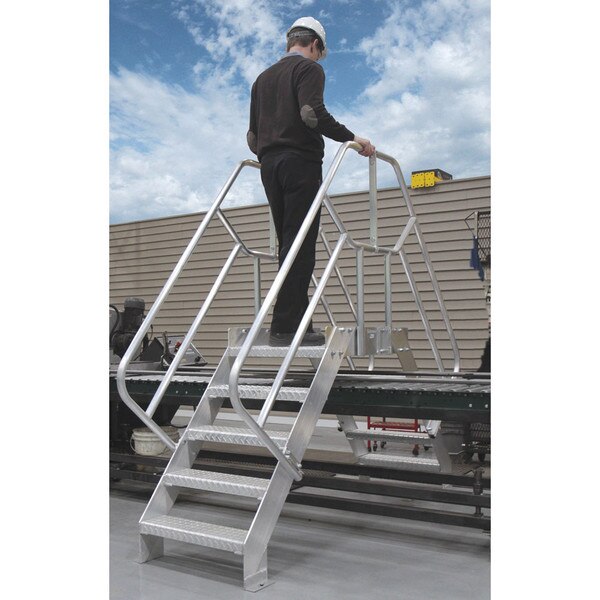

Cotterman Crossover Bridges provide safe walkways over a variety of obstacles such as conveyors, machines, and pipes. Crossover Bridges are available in Steel or Aluminum.

Features:

• 500 lb. Load Rating
• 50° climb angle, with 8" step rise
• 42" Handrals, constructed of 1-1/2" diameter round tube
• Stair sections have 24-1/8" wide by 4-7/8" deep steps
• Top platform includes a 4" high toe board on each side
• Legs have floor mounting plate with 5/8" diameter hole

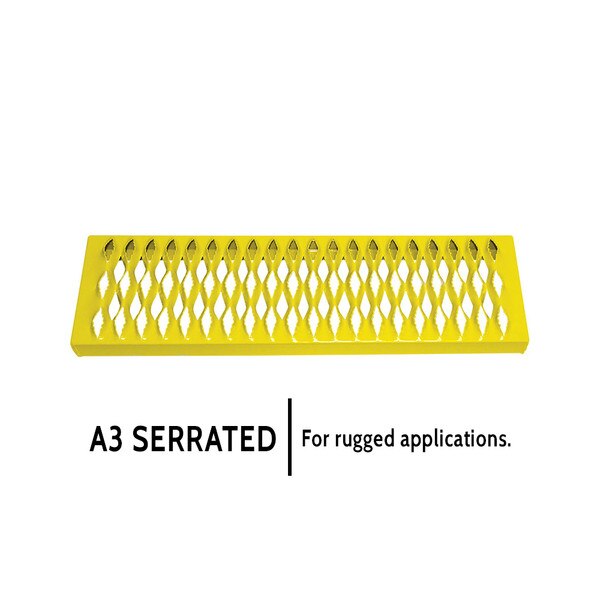

• A3 Serrated steps
• Ships unassembled
• Gray powder coat finish is standard on steel models
• Crossover Bridges meet applicable OSHA and ANSI standards



Product Code: 7SCS36A3
