Cotterman Series M Standard Fixed Steel Ladders with Cage - 22'3"

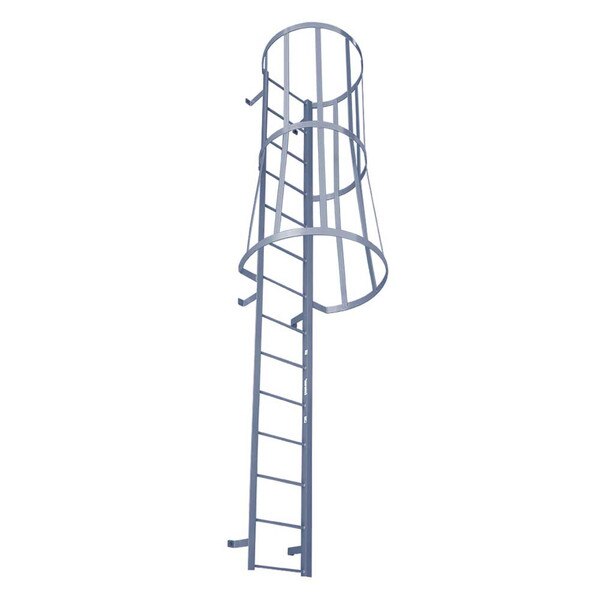

(Product image may not represent actual product)
Cotterman Series M Standard Fixed Steel Ladders with Cage - 22'3" (M23SC)
The Cotterman Series M Modular Standard Fixed Steel Ladder with Cage is the ideal ladder for the contractor looking to match safety with productivity. This Cotterman Modular Fixed Steel Ladder with Cage has a height of 22' 3" and is ideal for side step landing and hatch-way access. Right or left side step access cage designs are available at no charge.
- Ladders are heavy duty sub-assemblies - no section is greater than 7' in length.
- Easy Entry - flared bottom opening
- Left or right side step access cage designs are available at no charge.
- Gray Powder Coat Finish is standard color, yellow available.
- Hot Dip Galvanized Finish or Stainless Steel construction can be quoted.
- *Custom Stand-off Lengths can be quoted.
- Cage begins 7' from bottom of ladder.
- Load Capacity: 300 lbs
- Size: 22' 3"
- Length of Climb: 22'
- Meets or Exceeds: ANSI A14.3, OSHA 1910.27 and 1926.1053 standards
- Stand-off Bracket Length*: 7"
- Side Member Dimensions: 1/4" x 2" x 2" steel angle
- Climbing Rungs: 3/4" corrugated steel round rungs, spaced on 12" centers
Product Code: M23SC
