Cotterman Space-Saver Crossover Bridge - 4 Step - Aluminum - 36" W - A7 Tread

Cotterman Space-Saver Crossover Bridge - 4 Step - Aluminum - 36" W - A7 Tread

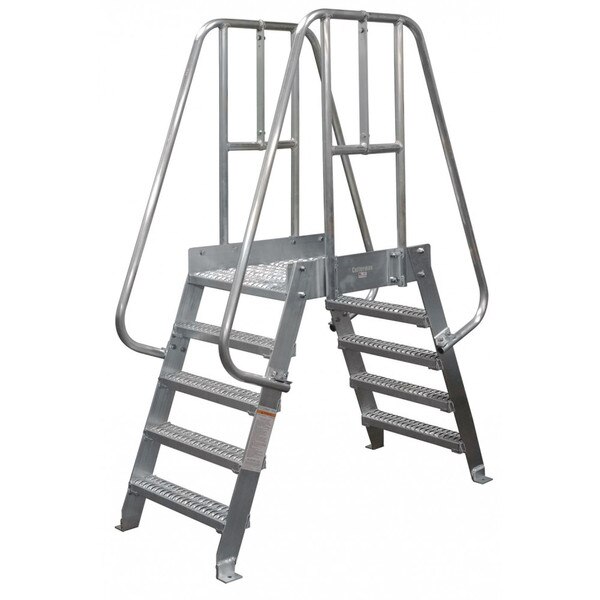

Cotterman® Space-Saver Crossover Bridges provide safe access over obstacles in areas with limited space due to a steeper climb angle. This Aluminum Space-Saver Crossover Bridge has a width of 36". This Space-Saver Crossover Bridge has a height of 4 steps and features A7 Diamond Plate steps.

Features:

• 70° climb angle, with 8" step rise
• 42" Handrals, constructed of 1-1/2" diameter round tube
• Stair sections have 24-1/8" wide by 4-7/8" deep steps. The top platform includes a 4" high toe board on each side
• Legs have floor mounting plate with 5/8" diameter hole
• Ships unassembled
• Aluminum finish

Specifications:

• Height: 4 Steps

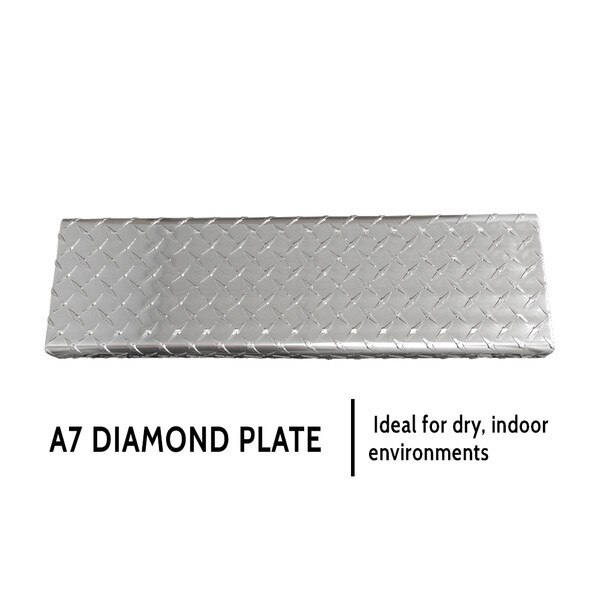

• Step Type: Diamond Plate (A7) - Classic, trustworthy grip. Ideal for dry, indoor environments
• Load Rating: 500 lbs
• CAL-OSHA requires customers to request a variance for specific application. NOTE: Before erecting Space-Save Crossover Bridge, check federal, state and local codes.

Product Code: 4SPA36A7
