Cotterman Space-Saver Crossover Bridge - 4 Step - Steel - 24" W - A7 Tread

(0) No Reviews yet
$1,074.40
SKU: 4SPS24A7
$1,074.40

Cotterman Space-Saver Crossover Bridge - 4 Step - Steel - 24" W - A7 Tread

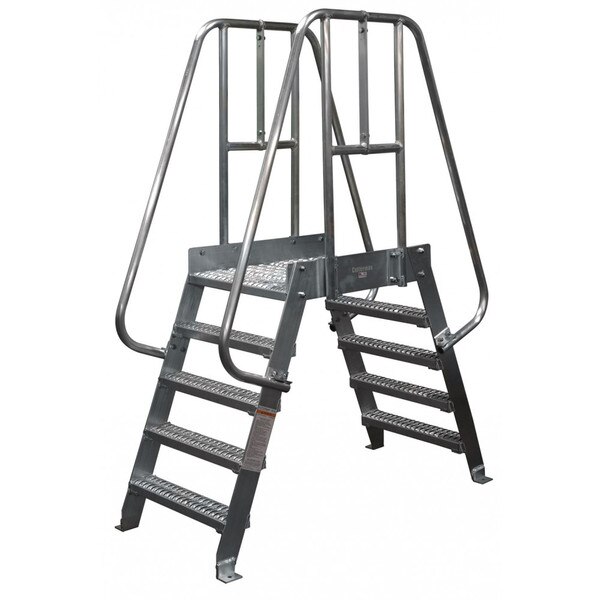

Cotterman® Space-Saver Crossover Bridges provide safe access over obstacles in areas with limited space due to a steeper climb angle. This Aluminum Space-Saver Crossover Bridge has a width of 24". This Space-Saver Crossover Bridge has a height of 4 steps and features A7 Diamond Plate steps.


Features:

  • 70° climb angle, with 8" step rise
  • 42" Handrals, constructed of 1-1/2" diameter round tube
  • Stair sections have 24-1/8" wide by 4-7/8" deep steps. The top platform includes a 4" high toe board on each side
  • Legs have floor mounting plate with 5/8" diameter hole
  • Ships unassembled
  • Gray powder coat finish is standard on steel models

Specifications:

  • Height: 4 Steps

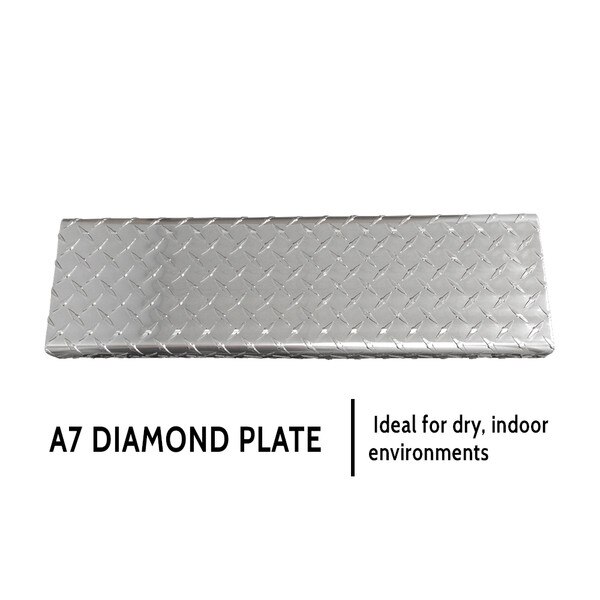

  • Step Type: Diamond Plate (A7) - Classic, trustworthy grip. Ideal for dry, indoor environments
  • Load Rating: 500 lbs
  • CAL-OSHA requires customers to request a variance for specific application. NOTE: Before erecting Space-Save Crossover Bridge, check federal, state and local codes.

Product Code: 4SPS24A7
