Sumner GH2T-10 with 10' Beam

(0) No Reviews yet
(Product Image May Not Represent Actual Product)
SKU: 785102

Sumner 2 Ton Gantry - GH2T-10 with 10' Beam

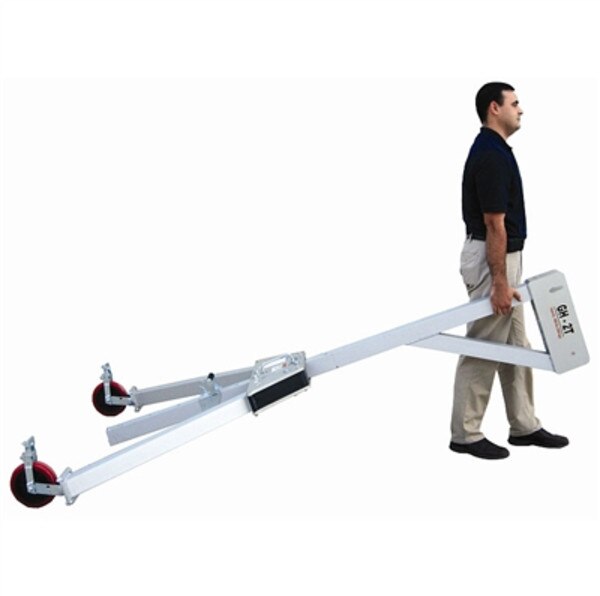

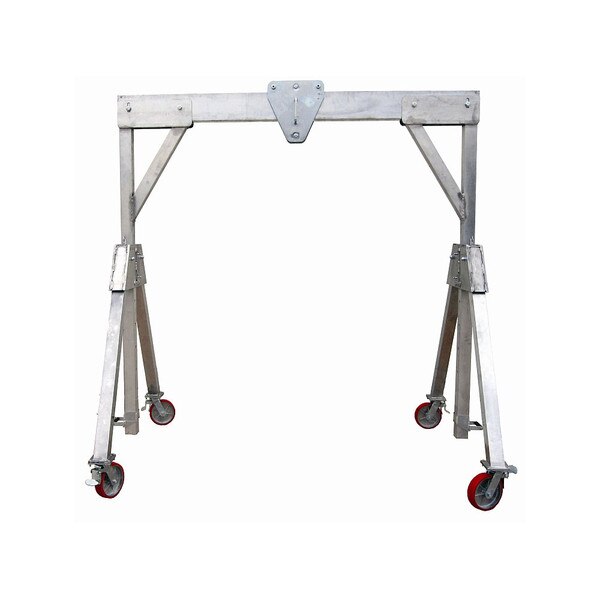

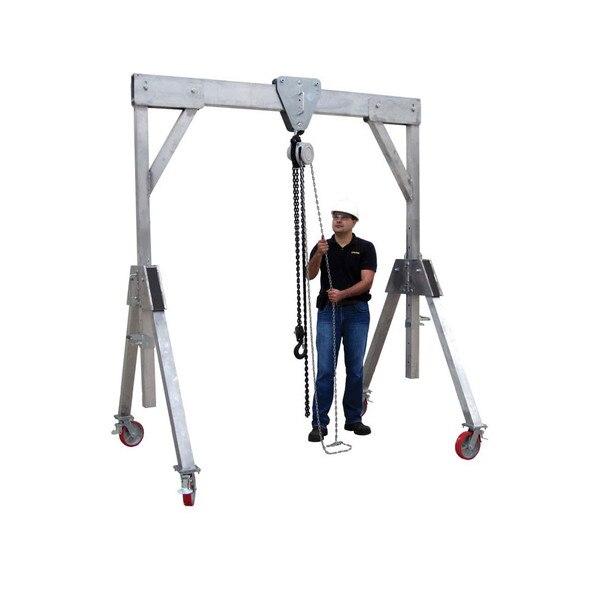

The GH2T gantries have a capacity of over two tons (4400lbs). The leverage design eliminates the need for fork lifts or other lifting devices. The GH2T-10 has a maximum working span of 82 inches. The lift weighs 296 pounds and the beam weighs 54.7 pounds, but this piece of equipment moves easily with the 8-inch caster wheels with foot breaks. The overall span from wheel to wheel is 120 inches. The gantry lifts are constructed of lightweight but heavy-duty aluminum. They can be broken down into manageable parts and easily assembled by just two people.


  • Size: 10'
  • Portable and Lightweight

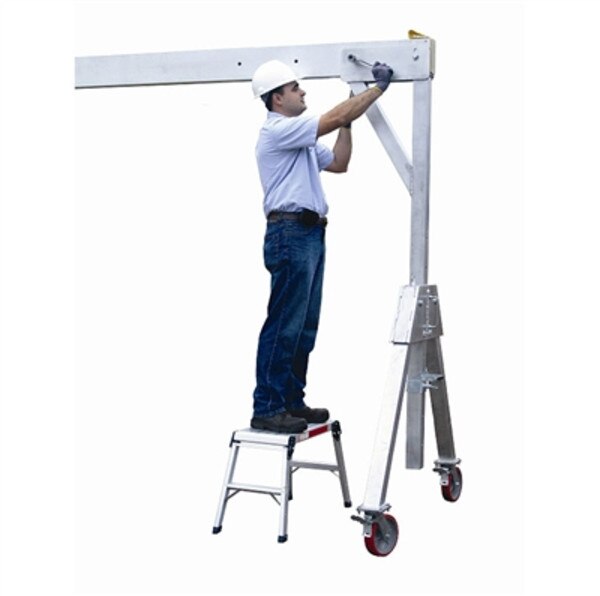

  • Fast and Easy Two-Person Assembly
  • 2 Metric Ton (4,400 lb) Capacity
  • Minimum Pieces - 2 A-Frames with 8" casters, Trolley, Cross Beam and attaching hardware
  • Adjustable Span
  • 8" (200 mm) Locking Casters
  • Aluminum Frames & Beam
  • Pinch Point Free
  • Unassisted Height Adjustment

Product Code: 785102
