Air-tow Enclosed Trailers
The Enclosed Airtow Trailer models are the first of their kind and built on the rugged Airtow 12’, 14’ or 16’ utility trailer.
The enclosure is lightweight and heavy duty and is comprised of galvanized Z-bars and sturdy siding.
Standard Features include
• 75″ wide, 3/16″ diamond plate steel deck
• Adjustable safety chains and coupler
• 10″ deep storage compartment on the tongue
• 24″ remote controller
(for operation of the hydraulic motor that raises and lowers the deck)
• Electric brakes
• “F”-rated tires
• Flush-mounted LED lighting
• Durable powder coat finish
Smooth & Maintenance-Free Suspension
Airtow’s smooth-riding, self-leveling air suspension is where the real magic happens. Our proprietary, patented Air-float swing-arm axles pivot on extra-large tapered roller bearings and ride on super-soft Firestone air bags keeping the wheels locked into a vertical plane of movement and running true, eliminating both uneven tire wear and premature tire failure. We don’t use any cheap, plastic guides or spring bushings found on other trailers that will wear out and need replaced. These axles, combined with our automatically self-leveling air suspension, offer the smoothest riding trailer available with none of the maintenance hassles!
Enclosed Model Specifications
| Model | E12 | E13 | E16 |
|---|
| Capacity (lb) | 9000 | 9000 | 9000 |
| Inside Deck Width | 75" | 75" | 75" |
| Inside Deck Length | 10'-3" | 12'-3" | 14'-3" |
| Door Height | 86" | 86" | 86" |
| Outside Ramp Width | 18" | 18" | 18" |
| Weight (lbs.) varies w/opt. | 3995 | 4295 | 4495 |
| Axles | Tandem | Tandem | Tandem |
| Tires | 16" 12 Ply | 16" 12 Ply | 16" 12 Ply |
| Brakes (2 Axles) | Electric | Electric | Electric |
| Suspension | Full Air | Full Air | Full Air |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
Air-tow Utility Trailers

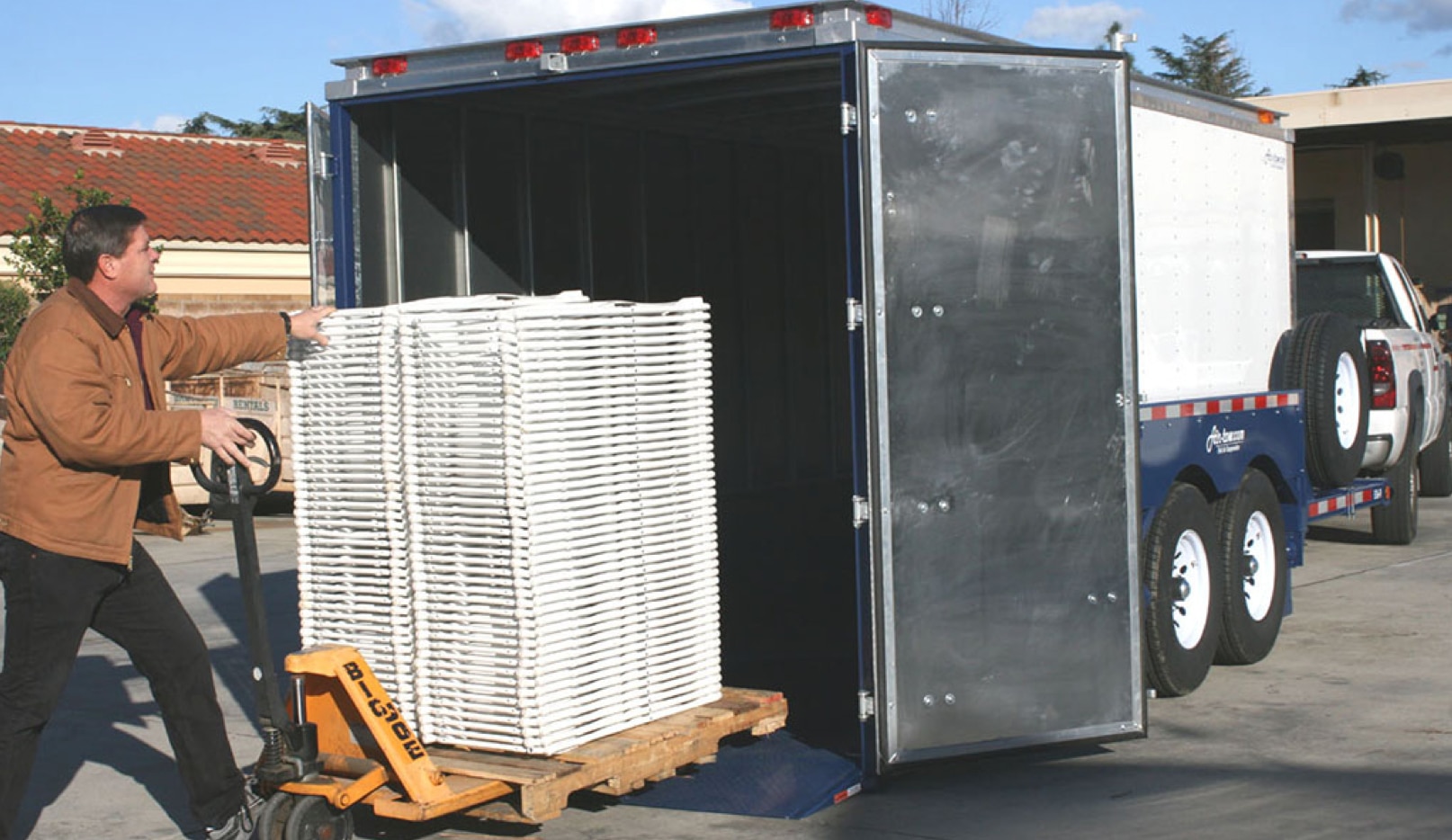

Enjoy the same features as the flatbed trailers, but with the added convenience of an enclosed box trailer. It is safe and east to enter the trailer at ground level. The full-width, low-angle ramp makes loading with a hand cart or dolly a simple operation. Air-tow utility models have a wide variety of options to fit your exact needs. These quality trailers are expertly crafted in Ohio and California factories by skilled steelworkers.
Standard Features include
• 75″ wide, 3/16″ diamond plate steel deck
• Adjustable safety chains and coupler
• 10″ deep storage compartment on the tongue
• 24″ remote controller
(for operation of the hydraulic motor that raises and lowers the deck)
• Electric brakes
• “F”-rated tires
• Flush-mounted LED lighting
• Durable powder coat finish
Smooth & Maintenance-Free Suspension
Air-tow’s smooth-riding, self-leveling air suspension is where the real magic happens. Their proprietary, patented Air-float swing-arm axles pivot on extra-large tapered roller bearings and ride on super-soft Firestone air bags keeping the wheels locked into a vertical plane of movement and running true. This brilliant technology eliminates both uneven tire wear and premature tire failure. These axles, combined with automatically self-leveling air suspension, offer the smoothest riding trailer available with none of the maintenance hassles!
Utility Model Specifications
| Model | RUS8-32 | USN10-55 | US10-55 |
|---|
| Capacity (lb) | 3200 | 5500 | 5500 |
| Deck Width | 4' 4" (52") | 4' 9" (57") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 8 ft.- 6" | 10 ft | 10 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 73" | 84" | 102" |
| Axles | Single | Single | Single |
| Wheels/Tires | 15" - 8 Ply | 15" - 8 Ply | 15" - 8 Ply |
| Brakes (electric - std.) | Electric | Electric | Electric |
| Suspension | Rubber | Air | Air |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2" Ball | 2" Ball | 2-5/16 Ball |
| Weight | 1725 | 2095 | 2450 |
| Model | US12-55 | UT12-7 | UT14-7 |
|---|
| Capacity (lb) | 5,500 | 7,000 | 7,000 |
| Deck Width | 6' 3" (75") | 6' 3" (75") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 12 ft | 12 ft | 14 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 102"/td> | 102" | 102" |
| Axles | Single | Tandem | Tandem |
| Wheels/Tires | 15" - 8 Ply | 15" - 8 Ply | 15" - 8 Ply |
| Brakes (electric - std.) | Electric | Electric (1 axle) | Electric (1 axle) |
| Suspension | Air | Air | Air |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
| Weight | 2995 | 3400 | 3600 |
| Model | UT10-10 | UT12-10 | UT14-10 |
|---|
| Capacity (lb) | 10,000 | 10,000 | 10,000 |
| Deck Width | 6' 3" (75") | 6' 3" (75") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 10 ft | 12 ft | 14 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 102"/td> | 102" | 102" |
| Axles | Tandem | Tandem | Tandem |
| Wheels/Tires | 16" - 12 Ply | 16" - 12 Ply | 16" - 12 Ply |
| Brakes (electric - std.) | Electric | Electric (1 axle) | Electric (1 axle) |
| Suspension | Air | Air | Air |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
| Weight | 3345 | 3475 | 3645 |
| Model | UT16-9 | UT14-12/th> | RUT14-12 |
|---|
| Capacity (lb) | 9,000 | 12,000 | 12,000 |
| Deck Width | 6' 3" (75") | 6' 3" (75") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 16 ft | 14 ft | 14 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 102" | 102" | 102" |
| Axles | Tandem | Tandem | Tandem |
| Wheels/Tires | 16" - 12 Ply | 16" - 12 Ply | 16" - 12 Ply |
| Brakes (electric - std.) | Electric | Electric | Electric |
| Suspension | Air | Air | Rubber |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
| Weight | 3895 | 3840 | 3840 |
Airtow Flatbed Trailers
These exceptional trailers are expertly crafted in Ohio and California factories by skilled steelworkers. They are built strong to stand up years of use.
Standard Features include
• 75″ wide, 3/16″ diamond plate steel deck
• Adjustable safety chains and coupler
• 10″ deep storage compartment on the tongue
• 24″ remote controller (for operation of the hydraulic motor that raises and lowers the deck)
• Electric brakes
• “F”-rated tires
• Flush-mounted LED lighting
• Durable powder coat finish
Smooth & Maintenance-Free Suspension
Airtow’s smooth-riding, self-leveling air suspension is where the real magic happens. Our proprietary, patented Air-float swing-arm axles pivot on extra-large tapered roller bearings and ride on super-soft Firestone air bags keeping the wheels locked into a vertical plane of movement and running true, eliminating both uneven tire wear and premature tire failure. We don’t use any cheap, plastic guides or spring bushings found on other trailers that will wear out and need replaced. These axles, combined with our automatically self-leveling air suspension, offer the smoothest riding trailer available with none of the maintenance hassles!
Flatbed Model Specifications
| Model | RS8-20 | RS8-32 | SN10-55 |
|---|
| Capacity (lb) | 2,000 | 3,200 | 5,500 |
| Deck Width | 4' 6" (54") | 4' 4" (52") | 4' 9" (57") |
| Deck Length (inc. 18" ramp) | 8 ft. - 6" | 8 ft.- 6" | 10 ft |
| Deck Material | Wood | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 92" | 73" | 84" |
| Axles | Single | Single | Single |
| Wheels/Tires | 14" - 6 Ply | 14" - 6 Ply | 14" - 6 Ply |
| Brakes (electric - std.) | Optional | Electric | Electric |
| Suspension | Rubber | Rubber | Air |
| Lift Mechanism | H. Crank | Hydraulic | Hydraulic |
| Coupler | 2" Ball | 2" Ball | 2-5/16 Ball |
| Weight | 1490 | 1675 | 1995 |
| Model | S10-55 | S12-55 | T12-7 |
|---|
| Capacity (lb) | 5,500 | 5,500 | 7,000 |
| Deck Width | 6' 3" (75") | 6' 3" (75") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 10 ft | 12 ft | 12 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 102" | 102" | 102" |
| Axles | Single | Single | Tandem |
| Wheels/Tires | 15" - 8 Ply | 15" - 8 Ply | 15" - 8 Ply |
| Brakes (electric - std.) | Electric | Electric | Electric (1 axle) |
| Suspension | Air | Air | Rubber |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
| Weight | 2395 | 2585 | 3250 |
| Model | T14-7 | T10-10 | T12-10 |
|---|
| Capacity (lb) | 7,000 | 10,000 | 10,000 |
| Deck Width | 6' 3" (75") | 6' 3" (75") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 14 ft | 10 ft | 12 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 102" | 102" | 102" |
| Axles | Tandem | Tandem | Tandem |
| Wheels/Tires | 15" - 8 Ply | 16" - 12 Ply | 16" - 12 Ply |
| Brakes (electric - std.) | Electric (1 axle) | Electric | Electric |
| Suspension | Air | Air | Air |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
| Weight | 3450 | 3195 | 3325 |
| Model | T14-10 | T16-9 | T14-12 |
|---|
| Capacity (lb) | 10,000 | 9,000 | 12,000 |
| Deck Width | 6' 3" (75") | 6' 3" (75") | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 14 ft | 16 ft | 14 ft |
| Deck Material | Steel Plate | Steel Plate | Steel Plate |
| Ramp Size | 18" | 18" | 18" |
| Overall Width | 102" | 102" | 102" |
| Axles | Tandem | Tandem | Tandem |
| Wheels/Tires | 16" - 12 Ply | 16" - 12 Ply | 16" - 12 Ply |
| Brakes (electric - std.) | Electric | Electric | Electric |
| Suspension | Air | Air | Air |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Coupler | 2-5/16 Ball | 2-5/16 Ball | 2-5/16 Ball |
| Weight | 3495 | 3685 | 3575 |
| Model | RT14-12 |
|---|
| Capacity (lb) | 12,000 |
| Deck Width | 6' 3" (75") |
| Deck Length (inc. 18" ramp) | 14 ft |
| Deck Material | Steel Plate |
| Ramp Size | 18" |
| Overall Width | 102" |
| Axles | Tandem |
| Wheels/Tires | 16" - 12 Ply |
| Brakes (electric - std.) | Electric |
| Suspension | Rubber |
| Lift Mechanism | Hydraulic |
| Coupler | 2-5/16 Ball |
| Weight | 3575 |
For current pricing and availability please contact Bob Fromm: 248-765-2258 | bob@natlad.com
