EZ Ramp
For current pricing and availability please contact Bob Fromm: 248-765-2258 | [email protected]
EZ Ramp Trailers
Features and Benefits
The safest and easiest ramp.
• Designed to load and unload equipment with out being hooked up to the tow vehicle.
• Weight on the ground.
• Aircraft carier deck coating, non slip even.
• No wood to rot or break.
• Composite fenders do not rust. Easy to replace and ship.

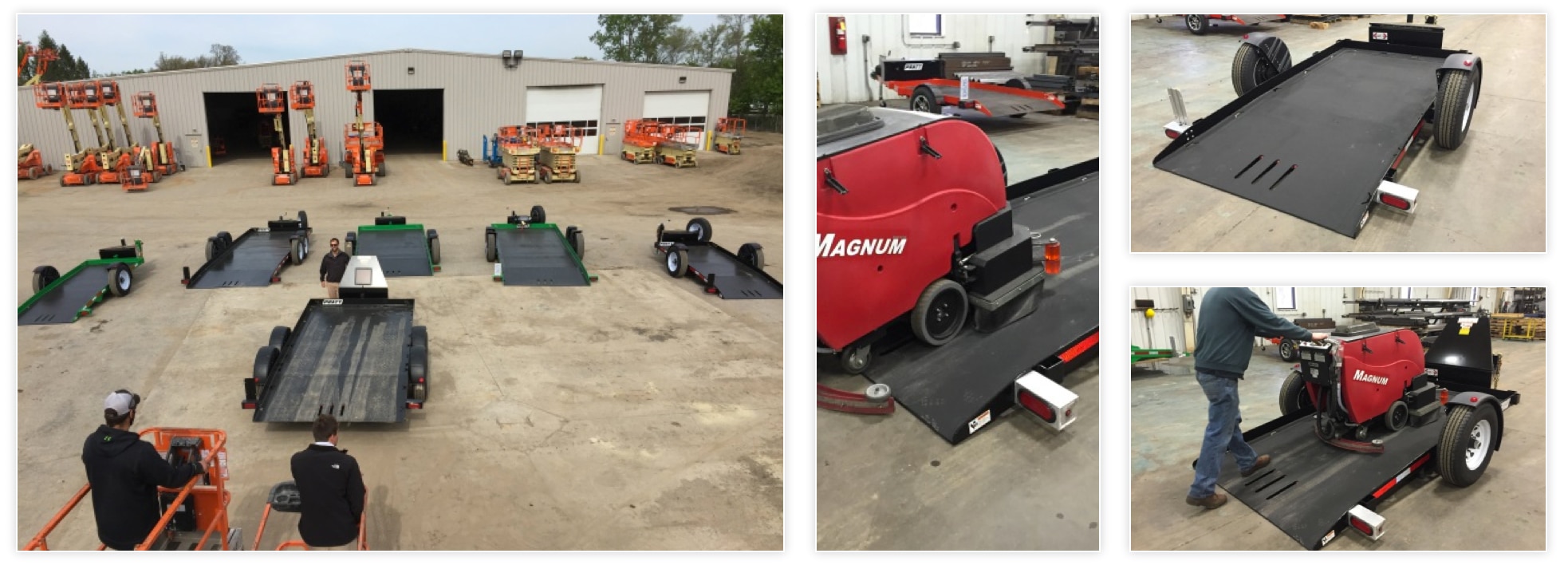

Load the largest equipment:
Scissor lifts, Floor Scrubbers, Fork Lifts, Skid Steers, Cranes, Cement cutters, Mini Excavators, Rollers, Mowers, Booms
Specifications
| Model | EZ-0865 | EZ-1065 | EZ-1260 |
|---|---|---|---|
| DIMENSIONS | |||
| Maximum Payload | 1,500 LBS | 3,200 LBS | 5,000 LBS |
| Axle Rating | 1 x 3,500 LBS | 5,500 LBS | 7,000 LBS |
| Trailer Weight | 800 LBS | 1,600 LBS | 1,755 LBS |
| Overall Width | 82" | 87.5" | 82" |
| Overall Length | 12' | 15' | 17' |
| Loading Surface Area | 65" x 8' | 65" x 10' | 60" x 12' |
| STANDARD FEATURES | |||
| Deck Surface | Steel Plate with Anti-Skid Coating | Steel Plate with Anti-Skid Coating | Steel Plate with Anti-Skid Coating |
| Lifting Device | Hydraulic with Electric Assist | Hydraulic with Electric Assist | Hydraulic with Electric Assist |
| Suspension | Single Torsion Axle | Single Torsion Axle | Single Torsion Axle |
| Wheel Size | 12" | 15" | 17.5" |
| Hitch Size | 2" Welded Style | 2" Ball Standard | 2-5/16" Ball Standard |
| Systems and Storage Box | Standard | Standard | Standard |
| Lighting | LED | LED | LED |
| Battery | Group 27 | Group 27 | Group 27 |
| Top-Wind Manual Jack | 2,000 LBS | 7,000 LBS | 7,000 LBS |
| Manual-Lock Hydraulic Cylinder | Standard | Standard | Standard |
| Options | Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |
Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |
Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |

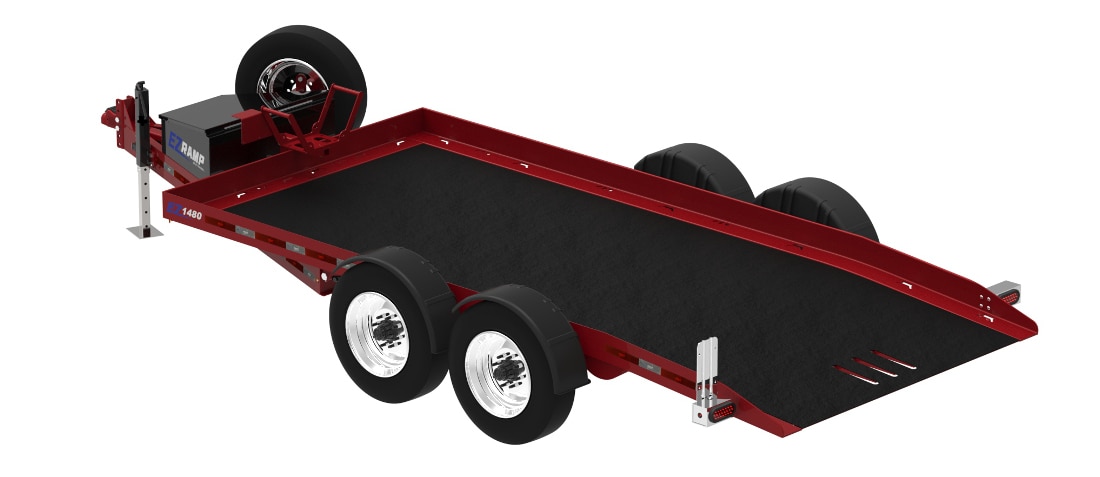

| Model | EZ-1265 | EZ-1265T | EZ-1480 |
|---|---|---|---|
| DIMENSIONS | |||
| Maximum Payload | 5,000 LBS | 7,000 LBS | 10,000 LBS |
| Axle Rating | 7,000 LBS | 2 x 5,500 LBS | 2 x 7,000 LBS |
| Trailer Weight | 1,755 LBS | 2,500 LBS | 2,800 LBS |
| Overall Width | 92" | 92" | 102" |
| Overall Length | 17' | 17' | 19' |
| Loading Surface Area | 65" x 12' | 65" x 12' | 80" x 14'9" |
| STANDARD FEATURES | |||
| Deck Surface | Steel Plate with Anti-Skid Coating | Steel Plate with Anti-Skid Coating | A Steel Plate with Anti-Skid Coating |
| Lifting Device | Hydraulic with Electric Assist | Hydraulic with Electric Assist | Hydraulic with Electric Assist |
| Suspension | Single Torsion Axle | Single Torsion Axle | Twin Torsion Axle |
| Wheel Size | 16" | 15" | 17.5" |
| Hitch Size | 2" Ball Standard | 2-5/16" Ball Standard | 2-5/16" Ball Standard |
| Systems and Storage Box | Standard | Standard | Standard |
| Lighting | LED | LED | LED |
| Battery | Group 27 | Group 27 | Group 27 |
| Top-Wind Manual Jack | 7,000 LBS | 7,000 LBS | 7,000 LBS |
| Manual-Lock Hydraulic Cylinder | Standard | Standard | Standard |
| Options | Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |
Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |
Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |

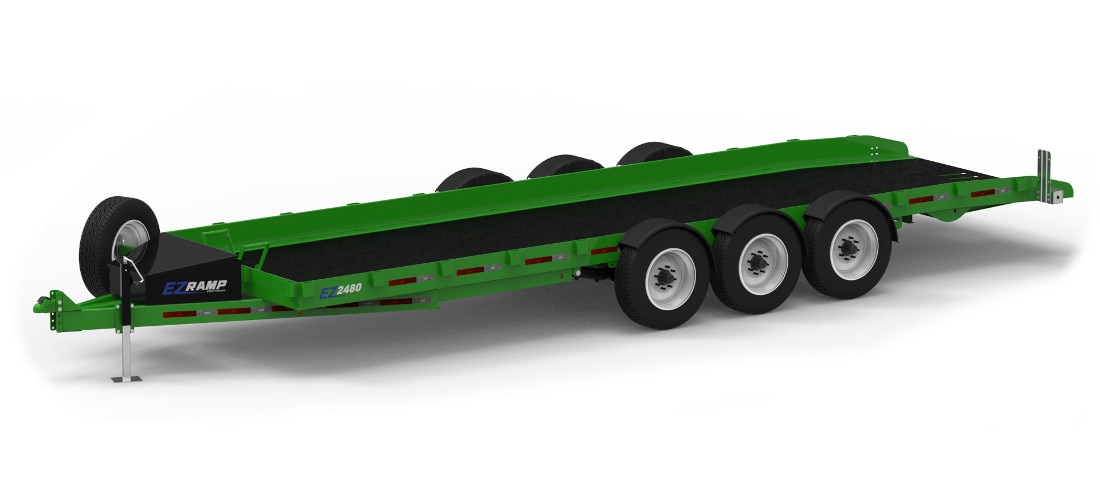

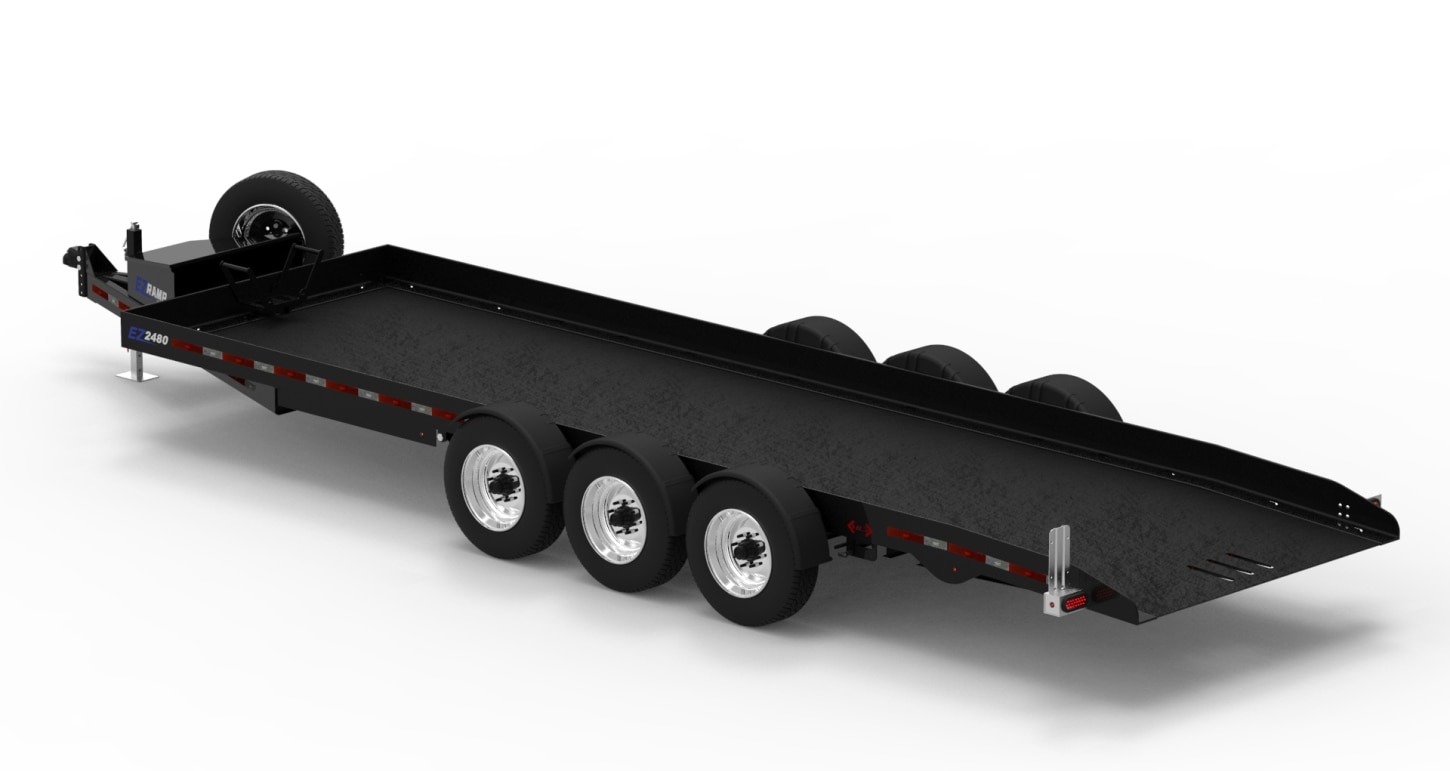

| Model | EZ-1980 | EZ-2480 |
|---|---|---|
| DIMENSIONS | ||
| Maximum Payload | 10,000 LBS | 17,000 LBS |
| Axle Rating | 2 x 7,000 LBS | 3 x 7,000 LBS |
| Trailer Weight | 3,323 LBS | 5,000 LBS |
| Overall Width | 102" | 102" |
| Overall Length | 24' | 29' |
| Loading Surface Area | 80" x 19' | 80" x 24' |
| STANDARD FEATURES | ||
| Deck Surface | Steel Plate with Anti-Skid Coating | Steel Plate with Anti-Skid Coating |
| Lifting Device | Hydraulic with Electric Assist | Hydraulic with Electric Assist |
| Suspension | Twin Torsion Axle | Triple Torsion Axle |
| Wheel Size | 17.5" | 17.5" |
| Hitch Size | 2-5/16" Ball Standard | 2-5/16" Ball Standard |
| Systems and Storage Box | Standard | Standard |
| Lighting | LED | LED |
| Battery | Group 27 | 2-5/16" |
| Top-Wind Manual Jack | 7,000 LBS | 10,000 LBS |
| Manual-Lock Hydraulic Cylinder | Standard | Standard |
| Options | Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |
Aluminum Rail Kit, 10 Amp On-Board Battery Charger, Single Spare Tire Carrier, Spare Tire, Wireless Remote, Direct Vehicle Charging Cable, Drum Surge Brakes, Winch Kit, Custom Colors, Solar Trickle Charger, Disc Surge Brakes |
