JLG Triple L Flatbed Trailers
JLG TRIPLE-L flatbed trailers are ideal for carrying equipment with low ground clearance or poor traction like scissor lifts, industrial sweepers, pavers, rollers, landscaping equipment, compactors and more. With nine models to choose from and capacities up to 10,000 pounds we have the right trailer to meet your needs.
Backed by the engineering prowess and innovation of a world-leading equipment manufacturer, the TRIPLE-L trailer delivers the best combination of productivity, quality and value for your money. The TRIPLE-L flatbed trailers feature the exclusive Power Deck system, which is a unique hydraulic mechanism used to lower the entire deck of the trailer to ground level, unlike ramp and tilt-bed systems. This feature eliminates the need to drive, pull, winch, or push a payload up or down a loading ramp and providing faster, safer, more efficient loading of everything from construction and industrial equipment to vending machines and supplies.
Triple-L Trailers Advantages
• Exclusive Power Deck® system
• Deck raises and lowers in 15 seconds
• Single-lever hydraulic control
• Quadra Spring suspension for smoother transport
• Low clearance loading with full-width, low-angle ramp
• Lockable compartments protect components and tools
• Variety of options/accessories for extra versatility
Triple-L Flatbed Trailers Improved Safety
• Keeps all loading and unloading at ground level
• Eliminates chances of dropping cargo off ramps
• Eliminates heavy, hinged ramps that can come loose or drop
• Eliminates climbing to access machine tie-downs
Triple-L Trailers Power Deck Advantages
• Efficient one-person operation
• No driving or lifting payload up/down inclines
• No cumbersome ramp adjustments
• Can accommodate multiple items
• Can be loaded or unloaded while detached from a tow vehicle
• No winches required
Triple-L Flatbed Specifications

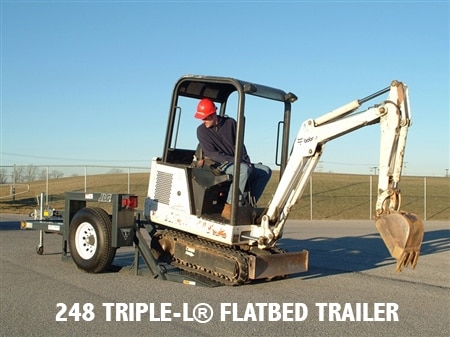

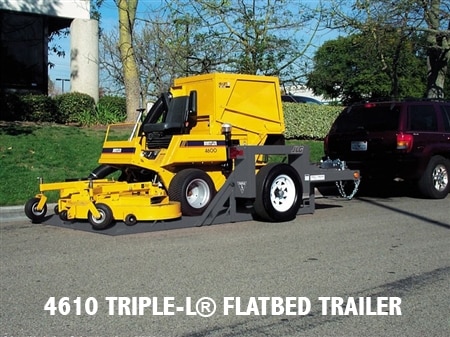

| Model | 248 | 449 | 4610 |
|---|---|---|---|
| Capacity (lb) | 2,200 | 5,000 | 4,500 |
| Deck Width | 4' 4" | 4' 4" | 6' |
| Deck Length | 8' | 9' | 10' |
| Overall Length | 14' | 14' | 15' |
| Trailer Weight (lb)* | 1,510 | 1,670 | 2,070 |
| Lift Mechanism | Winch | Hydraulic | Hydraulic |
| Axle | Single | Single | Single |
| Wheel Size | 15" | 16" | 14.5" |
| Brakes | Optional | Electric | Electric |
| Hitch - Ball Size | 2" | 2" | 2"" |
| Model | 7610 | 7612 | 7614 |
|---|---|---|---|
| Capacity (lb) | 7,000 | 7,000 | 7,000 |
| Deck Width | 6' | 6' | 6' |
| Deck Length | 10' | 12' | 14' |
| Overall Length | 15' | 17' | 19' |
| Trailer Weight (lb)* | 2,500 | 2,690 | 2,930 |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Axle | Tandem | Tandem | Tandem |
| Wheel Size | 15" | 15" | 15" |
| Brakes | Electric | Electric | Electric |
| Hitch - Ball Size | 2-5/16" | 2-5/16" | 2-5/16" |

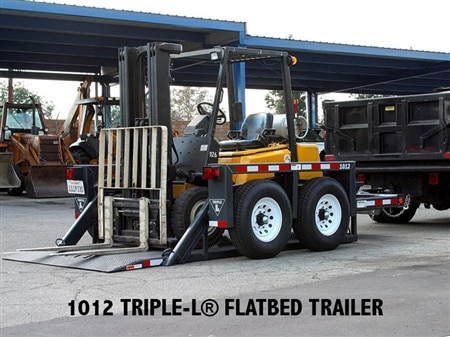

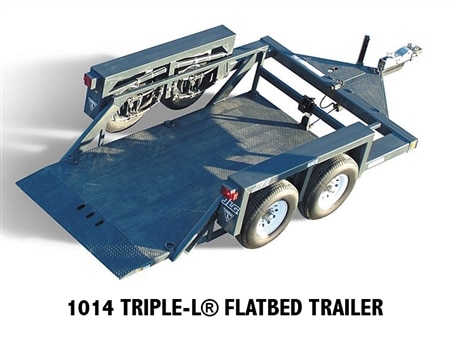

| Model | 7616 | 1012 | 1014 |
|---|---|---|---|
| Capacity (lb) | 6,500 | 10,000 | 10,000 |
| Deck Width | 6' | 5' 10" | 5' 10" |
| Deck Length | 16' | 12' | 14' |
| Overall Length | 21' | 17' | 19' |
| Trailer Weight (lb)* | 3,150 | 3,010 | 3,210 |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Axle | Tandem | Tandem | Tandem |
| Wheel Size | 16" | 16" | 16" |
| Brakes | Electric | Electric | Electric |
| Hitch - Ball Size | 2-5/16" | 2-5/16" | 2-5/16" |

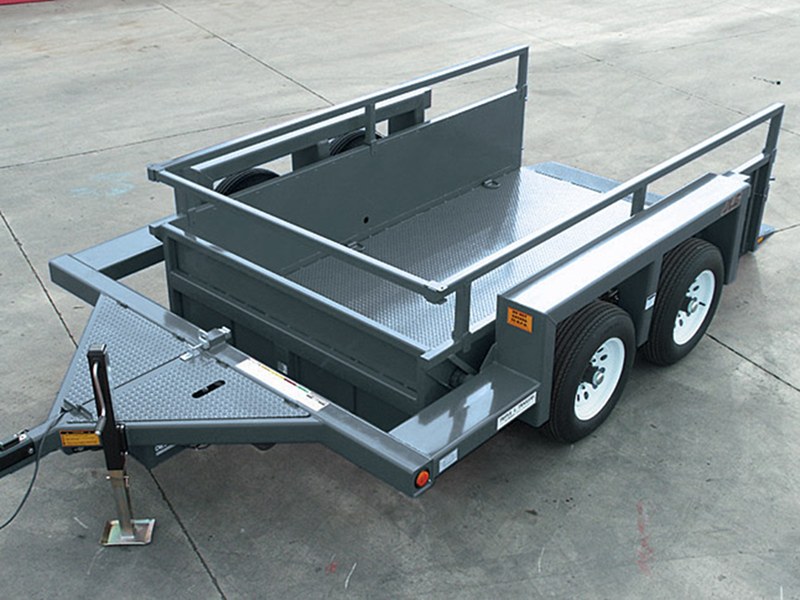

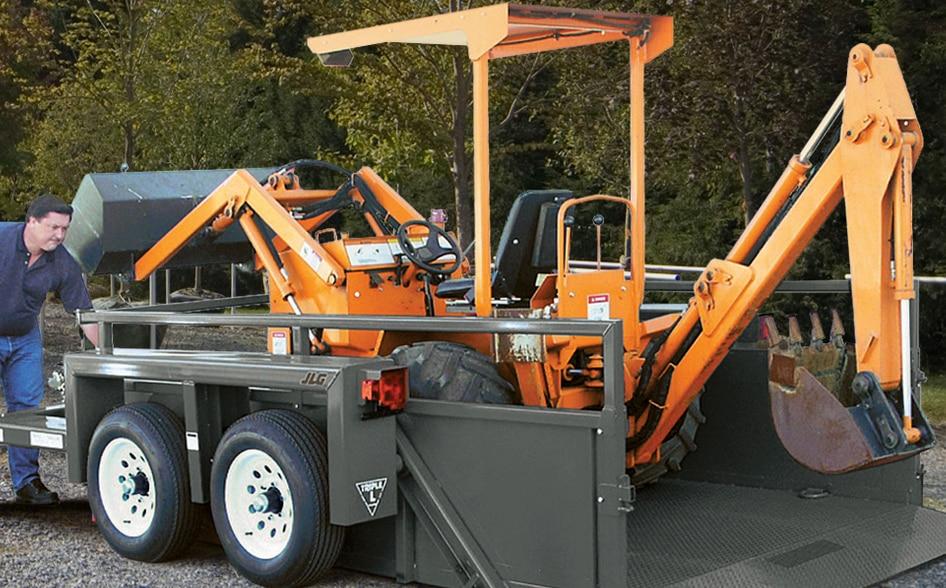

JLG Utility Trailers
The Triple-L® utility drop deck trailer delivers performance and versatility for carrying equipment and supplies, with the added convenience of enclosed sides. These dual-purpose models feature full-width, low-angle ramps that enable easier loading with a handcart or dolly. Optional rails and a tailgate can be added or removed at any time for added convenience.
Triple-L Utility Specifications

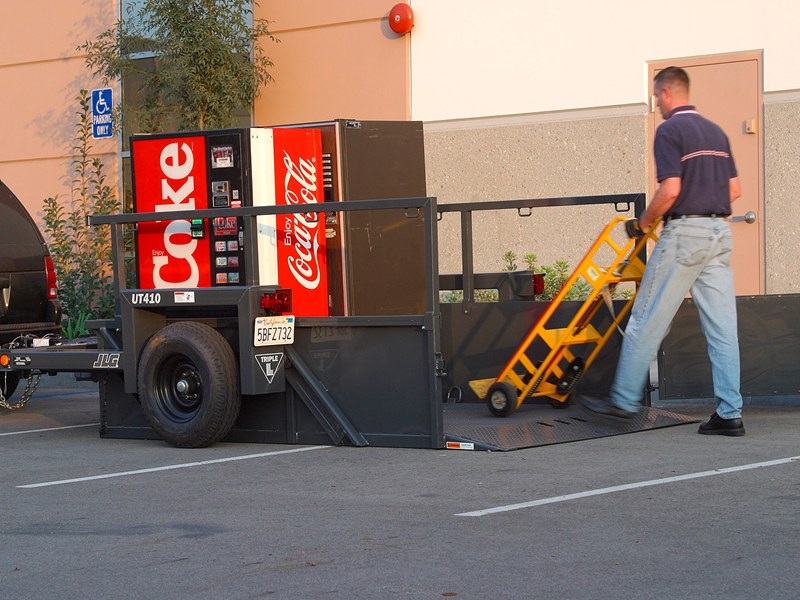

| Model | Ut28 | UT49 | UT410 |
|---|---|---|---|
| Capacity (lb) | 2,200 | 4,500 | 4,500 |
| Deck Width | 4' 4" | 4' 4" | 6' |
| Deck Length | 8' | 9' | 10' |
| Overall Length | 14' | 14' | 15' |
| Trailer Weight (lb)* | 1,510 | 1,795 | 2,220 |
| Lift Mechanism | Winch | Hydraulic | Hydraulic |
| Axle | Single | Single | Single |
| Wheel Size | 15" | 16" | 14.5" |
| Brakes | Optional | Electric | Electric |
| Hitch - Ball Size | 2" | 2- 5/16" | 2- 5/16" |
| Model | Ut610 | UT612 | UT614 |
|---|---|---|---|
| Capacity (lb) | 7,000 | 7,000 | 6,500 |
| Deck Width | 6' | 6' | 6' |
| Deck Length | 10' | 12' | 14' |
| Overall Length | 15' | 17' | 19' |
| Trailer Weight (lb)* | 2,650 | 2,850 | 3,050 |
| Lift Mechanism | Hydraulic | Hydraulic | Hydraulic |
| Axle | Tandem | Tandem | Tandem |
| Wheel Size | 15" | 15" | 15" |
| Brakes | Electric | Electric | Electric |
| Hitch - Ball Size | 2-5/16" | 2-5/16" | 2-5/16" |

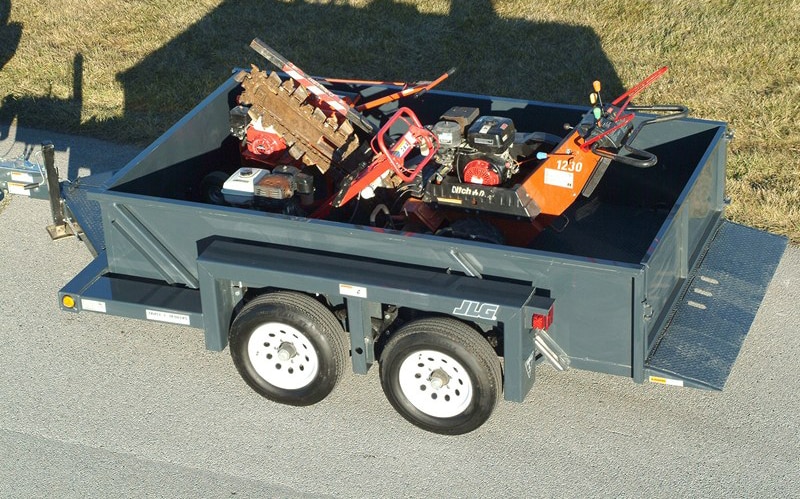

| Model | UT912 | UT914 |
|---|---|---|
| Capacity (lb) | 10,000 | 10,000 |
| Deck Width | 5' 10" | 5' 10" |
| Deck Length | 12' | 14' |
| Overall Length | 17' | 19' |
| Trailer Weight (lb)* | 3,170 | 3,370 |
| Lift Mechanism | Hydraulic | Hydraulic |
| Axle | Tandem | Tandem |
| Wheel Size | 16" | 16" |
| Brakes | Electric | Electric |
| Hitch - Ball Size | 2" | 2" |
