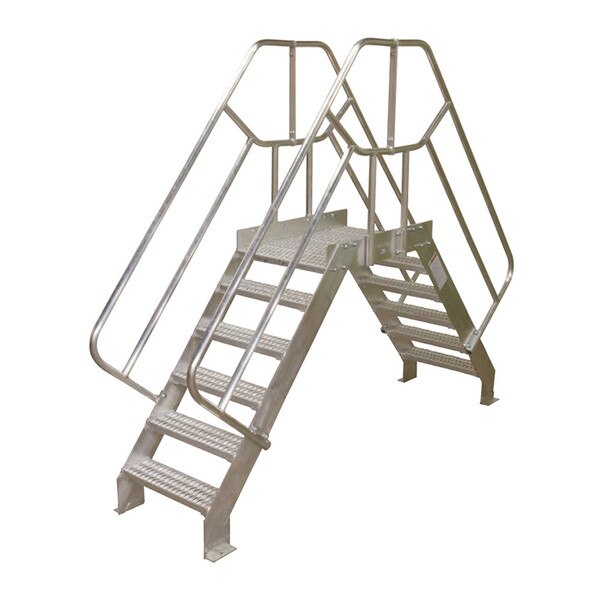

Cotterman Crossover Bridge - 7 Step - Aluminum - 24" W - A7 Tread

Cotterman Crossover Bridge - 7 Step - Aluminum - 24" W - A7 Tread

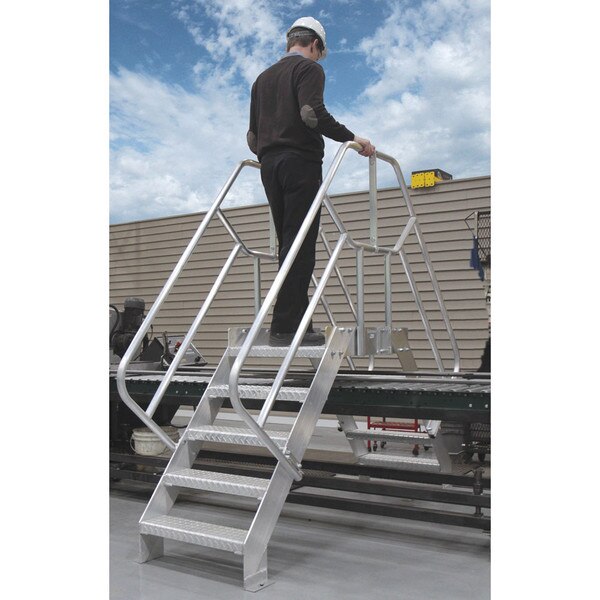

Cotterman Crossover Bridges provide safe walkways over a variety of obstacles such as conveyors, machines, and pipes. Crossover Bridges are available in Steel or Aluminum.

Features:

• 500 lb. Load Rating
• 50° climb angle, with 8" step rise
• 42" Handrals, constructed of 1-1/2" diameter round tube
• Stair sections have 24-1/8" wide by 4-7/8" deep steps
• Top platform includes a 4" high toe board on each side
• Legs have floor mounting plate with 5/8" diameter hole

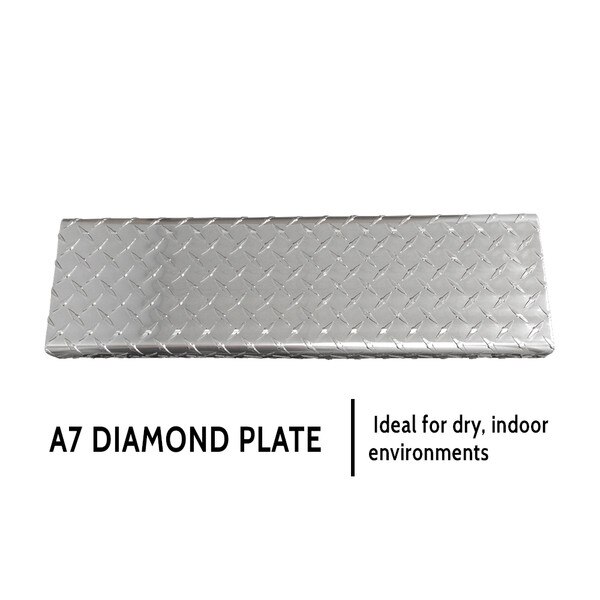

• A7 Diamond Plate steps
• Ships unassembled
• Aluminum models have brightened, uniform finish
• Crossover Bridges meet applicable OSHA and ANSI standards



Product Code: 7SCA24A3
