20' Rolling Tower Package (7004C-7X20RT)
Made In USA
$3,377.00
SKU: 7004C-7X20RT

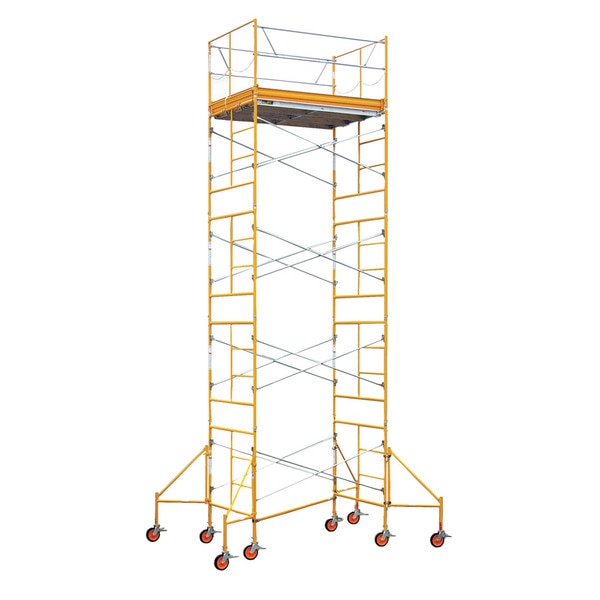

Bil-Jax 20' Rolling Tower with 5' x 5' Step Frames & C-lock at 27-3/4" Spacing
Bil-Jax Rolling Tower Packages are manufactured from high strength steel tubing with coped and arc welded perimeter joints on all frames. The rolling towers offer a large work platform with adjustable platform levels and an easy access guard rail system. Standard 7 tube size. All standard components are quick and easy to assemble.
Specifications:
- Dimensions: 7'L x 5'W x 20'H
- Range: 2'-21'
- Working Height: 27'
- Weight: 775
| 7004C-7X20RT | ||
|---|---|---|
| Part Number | Description | Qty |
| 7004-02552 | 5X5 STEP FRAME | 8 |
| 0007-117 | 9" INSERT PIN | 16 |
| 0019-47-507 | 7' SQUARING BRACE | 1 |
| 0010-01-07 | 7' DIAGONAL BRACE | 8 |
| 0068-037 | RIVET PIN W/COTTER | 16 |
| 0068-012 | HINGE PIN | 16 |
| 0012-227-05 | 5' END PANEL | 2 |
| 0012-209-07 | 7' SIDE PANEL | 2 |
| 0012-202-07 | 7' TOEBOARD | 2 |
| 0054-216 | 7' WALKBOARD | 3 |
| 0048-27 | 30" WIDE OUTRIGGER | 4 |
| 0026-972 | 8" YELLOW CASTER | 8 |
| 0032-086 | 15" YELLOW CASTER | 0 |
Product Code: 7004C-7X20RT
