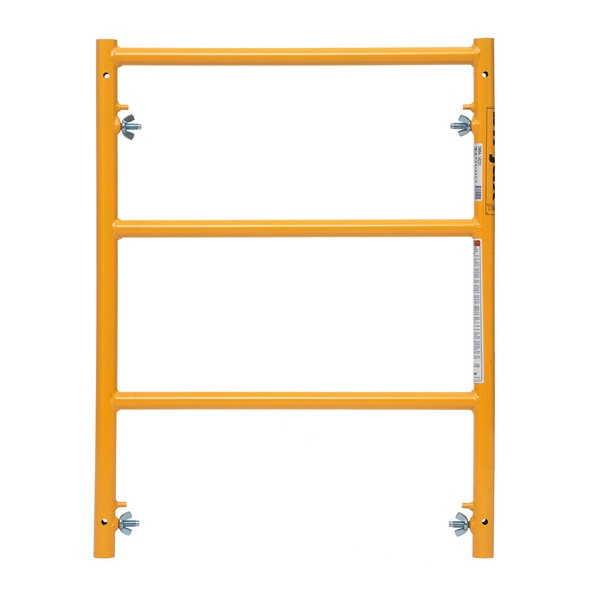

Bil-Jax 28"W X 3'H Ladder Type Frame (5-1423-1)
Bil-Jax Scaffold Frame - 28"W X 3'H Ladder Type Frame (5004-14231)
Bil-Jax Scaffold is made in the USA and meets or exceeds all OSHA and ANSI specifications. Bil-Jax Ladder Type Frames are built to last and conform to the most rigid tolerance tests in the industry. Bil-Jax Scaffold products, including Bil-Jax Ladder Type Frame Scaffold, are the most used and recognized on the market today.
- Meets or Exceeds all O.S.H.A and A.N.S.I Standards
- Wing Nut Locks are Standard
- INCLUDES: Stacking and Rivet Pins
- Manufactured from High Carbon/Strength Steel Tube
- Plated Finish on Frame Locks
- High Gloss Primer Enamel Finish
- All Frames Drilled for Easy Pinning
- 28" Width X 3' Height
- Outside Diameter: 1.69"
- Inside Diameter: 1.50"
- Stud Spacing: 27.75"
- Wall Thickness: 1/8"
- Finish: Safety Yellow
Product Code: 5004-14231
