Bil-Jax 28"W X 5'H Ladder Type Frame (5-1425-1)

(0) No Reviews yet
SKU: 5004-14251-NL

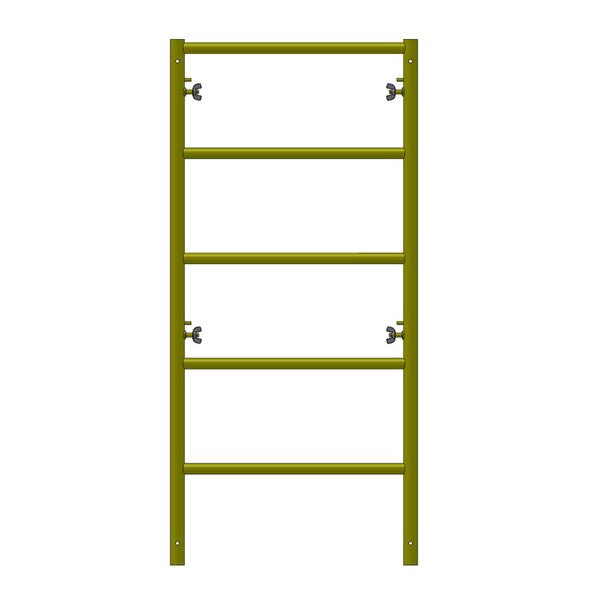

Bil-Jax Ladder Type Frame Scaffold 28" W x 5' H

Bil-Jax Scaffold is made in the USA and meets or exceeds all OSHA and ANSI specifications. Bil-Jax Ladder Type Frames are built to last and conform to the most rigid tolerance tests in the industry. Bil-Jax Scaffold products, including Bil-Jax Ladder Type Frame Scaffold, are the most used and recognized on the market today.


  • Meets or Exceeds all O.S.H.A and A.N.S.I Standards
  • Wing Nut Locks are Standard
  • Include: Stacking and Rivet Pins
  • Manufactured from High Carbon/Strength Steel Tube
  • Plated Finish on Frame Locks
  • High Gloss Primer Enamel Finish
  • All Frames Drilled for Easy Pinning


  • 28" Width x 5' Height
  • Outside Diameter: 1.69"
  • Inside Diameter: 1.50"
  • Stud Spacing: 27.75"
  • Wall Thickness: 1/8"
  • Finish: Safety Yellow

Product Code: 5004-14251
