Bil-Jax 5'W X 3'H Step Type Frame (7004-02532)

(0) No Reviews yet
Made In USA
SKU: 7004-02532-NL

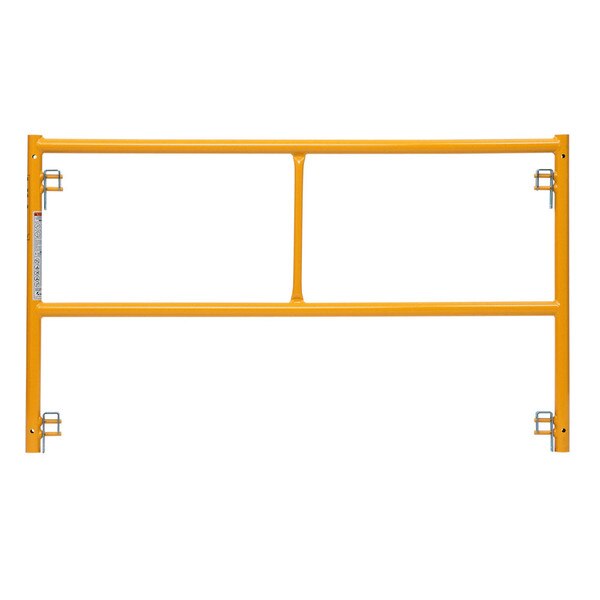

Bil-Jax Scaffold Frame - 5' W x 3' H Step Type Frame

Bil-Jax Scaffold is made in the USA and meets or exceeds all OSHA and ANSI specifications. Bil-Jax Step Type Frames are built to last and conform to the most rigid tolerance tests in the industry. Bil-Jax Scaffold products are the most used and recognized on the market today.


  • Meets or Exceeds all O.S.H.A and A.N.S.I Standards
  • INCLUDE: Stacking and Rivet Pins
  • Manufactured from High Carbon/Strength Steel Tube
  • Plated Finish on Frame Locks
  • High Gloss Primer Enamel Finish
  • All Frames Drilled for Easy Pinning
  • Comes complete with a factory installed gravity drop C-Lock & rust resistant insert pins fastened to each frame


  • Outside Diameter: 1.69"
  • Inside Diameter: 1.50"
  • Stud Spacing: 27.75"
  • Wall Thickness: 1/8"
  • Finish: Safety Yellow

Product Code: 7004-02532
