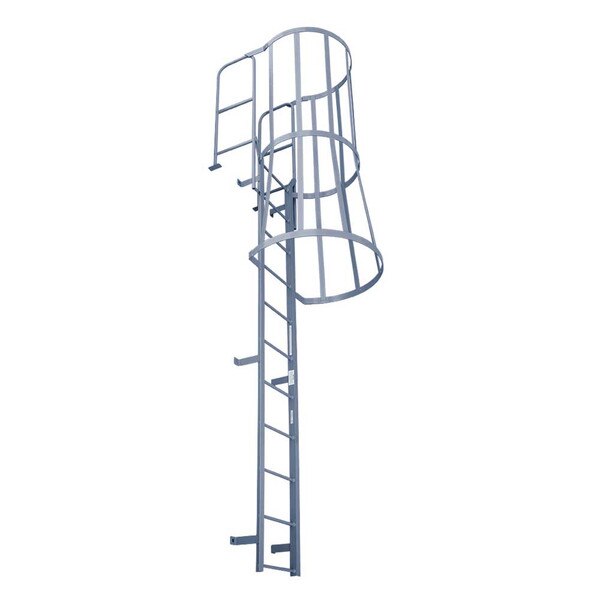

Cotterman Modular Fixed Steel Ladder w/ Walk-thru and Cage - 22'8"
$1,907.92
SKU: M20WC
Cotterman Modular Fixed Steel Ladder w/ Walk-thru and Cage - 22'8" (M20WC)
This Cotterman Series M - Modular Fixed Steel Ladder with Walk Thru and Cage is 21' 8" and is the premier ladder where safe landing access is necessary. The Cotterman Series M design has a flared bottom opening for easy entry. Cotterman Ladders exceeding 30' in height require a standoff platform for safety. The Cotterman Fixed Steel Ladders with Walk Thru and Cage is safety rated and meets or exceeds ANSI A14.3, OSHA 1910.27 and 1926.1053 standards.
Features:
- Length of Climb: 19'
- Overall Length: 22' 8"
- Length of Handrail: 42" above landing surface
- Meet or Exceed: ANSI A14.3, OSHA 1910.27 and 1926.1053 standards
Specifications:
- Load Capacity: 300 lbs
- Stand-off Bracket Length: 7"
- Side Member Dimensions: 1/4" x 2" x 2" steel angle
- Climbing Rungs: 3/4" corrugated steel round rungs, spaced on 12" centers
- Gray Powder Coat Finish is standard color, yellow available.
- Hot Dip Galvanized Finish or Stainless Steel construction can be quoted.
- *Custom Stand-off Lengths can be quoted.
- Cage begins 7' from bottom of ladder.
Product Code: M20WC
