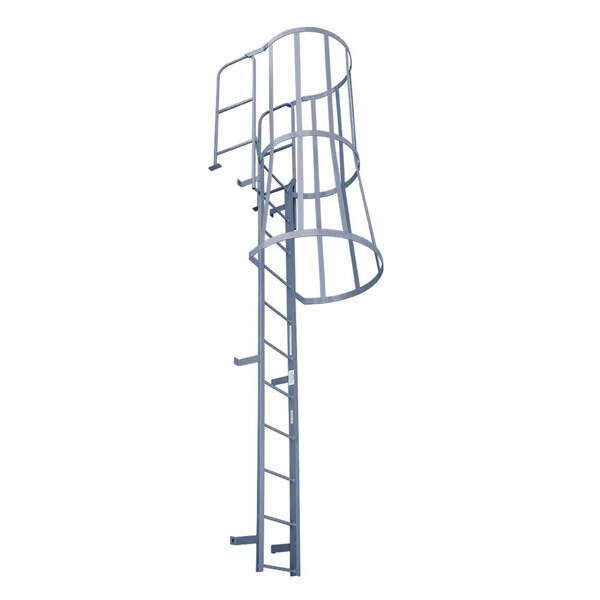

Cotterman Modular Fixed Steel Ladder w/ Walk-thru and Cage - 23'8"

Cotterman Modular Fixed Steel Ladder w/ Walk-thru and Cage - 23'8" (M21WC)

This Cotterman Modular Fixed Steel Ladders with Walk Thru and Cage has a height of 23' 8" and is the premier ladder where safe landing access is necessary. The Cotterman Series M design has a flared bottom opening for easy entry. Cotterman Ladders exceeding 30' in height require a standoff platform for safety. This Cotterman Fixed Steel Ladder with Walk Thru and Cage is safety rated and meets or exceeds ANSI A14.3, OSHA 1910.27 and 1926.1053 standards.

Features:

• Gray Powder Coat Finish is standard color, yellow available.
• Hot Dip Galvanized Finish or Stainless Steel construction can be quoted
• *Custom Stand-off Lengths can be quoted.
• Cage begins 7" from bottom of ladder.

Specifications:

• Size: 23' 8"
• Length of Climb: 20'
• Length of Handrail: 42" above landing surface


  • Meets or Exceeds: ANSI A14.3, OSHA 1910.27 and 1926.1053 standards



  Specifications:

  • Load Capacity: 300 lbs
  • Stand-off Bracket Length: 7"
  • Side Member Dimensions: 1/4" x 2" x 2" steel angle
  • Climbing Rungs: 3/4" corrugated steel round rungs, spaced on 12" centers



  Product Code: M21WC
