KStrong® Megadavit H-Base Deluxe Kit

KStrong® Megadavit H-Base Deluxe Kit

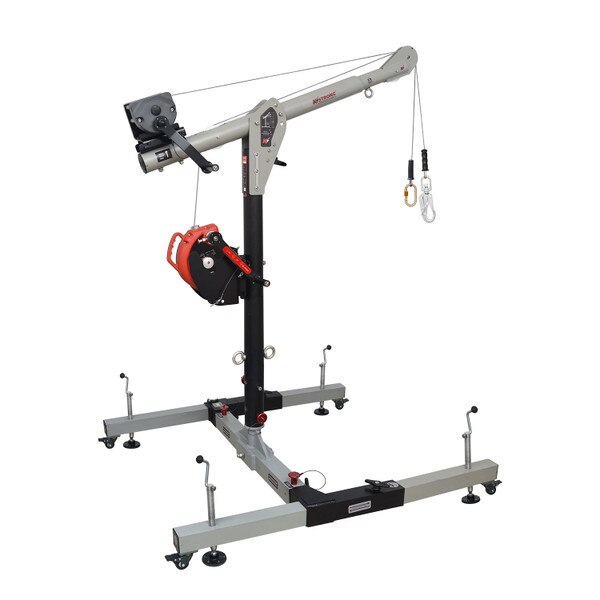

The KStrong® Megadavit™ breaks down into five components for easy storage, transport and setup. No tools are required for assembly. The modular design allows the use of various fixed and portable bases and an optional mast with extensions. Cantilever arm comes with 3 adjustment positions for the user to adjust the height as per the requirement. An ideal choice to provide overhead anchorages in large holes of confined space.


Features

• Includes H-Base frame assembly, 54 in. columnmast, 3 ft. cantilever boom arm with winch bracket
• 60 ft. 3-way rescue retrieval SRL-R with mounting bracket
• 60 ft. material / personnel winch
• Removable legs for easy transportation and installation purpose.
• Multiple anchorage points for rescue applications.
• Foldable legs for easy transportation and installation purpose.
• Inbuilt swivel feature, davit column assembly can be rotated up to 360° by removing the locking pins provided to lock column.
• Material: High Strength and Durable Aluminum Alloy
• Opening of H-base: Minimum Opening Ø43.3 in. (1100mm) & Maximum Opening Ø59.44 in. (1500mm)
• Maximum Load Capacity: 1102 lbs. (500kgs)
• Finish: ED coated grey.
• System Strength: 15 kN (3300 lbs).
• Weight: 196.70 lbs ± 0.22 lbs (89.22kgs ± 0.10kgs).
• Relevant Standards: Conforms to EN795:2012 Type B, AS/NZS 5532:2013
