Little Giant Lunar (Orange Rails) Type IAA 20'

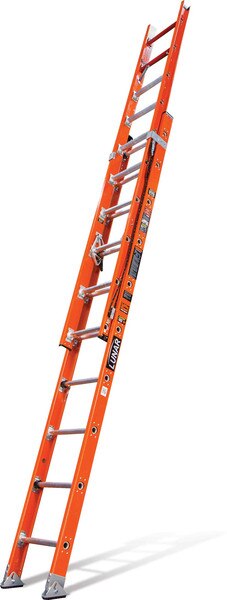

Little Giant LUNAR (Orange Rails) Ladder - 20 ft. Type 1AA
The Lunar extension ladder with Litewave technology is the lightest non-conductive fiberglass extension ladder in the world. The Lunar is rated for special duty use (Type 1AA - 375-Pound). The Lunar is the only extension ladder in the world constructed with Little Giant's unique Litewave black resin-fiberglass composite rail technology, resulting in an industrial-strength ladder that weighs as much as 30% less than ordinary extension ladders. Also available with optional cable hooks and V-rungs, auto-levelers, or the Claw Positioning System
Features:
- Height: 20 FT
- Little Giant Ladder Systems 1-Year limited warranty
- Litewave™ technology
- Assembled in the USA
- The lightest non-conductive fiberglass extension ladder in the world
- Non-conductive fiberglass resin for industrial & electrical applications
- Rated to 300 lbs.
Product Code: 15644-009
LUNAR | 16' IAA | 20' IAA | 24' IAA | 28' IAA | 32' IAA |
Weight Capacity | 375 lbs | 375 lbs. | 375 lbs. | 375 lbs. | 375 lbs. |
Extension Min Height | 8 ft. | 10 ft. | 12 ft. | 14 ft. | 16 ft. |
Extension Max Height | 16 ft. | 20 ft. | 24 ft. | 28 ft. | 23 ft. |
Storage Height | 8 ft. 7 in. | 10 ft. 7 in. | 12 ft. 6 in. | 14 ft. 6 in. | 20 ft. 7 in. |
Storage Width at Base | 1 ft. 5.5 in. | 1 ft. 5.5 in. | 1 ft. 5.5 in. | 1 ft. 5.5 in. | 1 ft. 5.5 in. |
Storage Depth | 6.5 in. | 6.25 in. | 6.25 in. | 6.25 in. | 6.25 in. |
Rung Size Single Section | Inner: 1.25 in. Outer: 1 in. | Inner: 1.25 in. Outer: 1 in. | Inner: 1.25 in. Outer: 1 in. | Inner: 1.25 in. Outer: 1 in. | Inner: 1.25 in. Outer: 1 in. |
Rung Size Double Section | 4 in. | 4 in. | 4 in. | 4 in. | 4 in. |
Extension Lock System | Rung Locks | Rung Locks | Rung Locks | Rung Locks | Rung Locks |
Material | Fiberglass | Fiberglass | Fiberglass | Fiberglass | Fiberglass |
Feet | Alum. Spur Foot & Rubber Pad | Alum. Spur Foot & Rubber Pad | Alum. Spur Foot & Rubber Pad | Alum. Spur Foot & Rubber Pad | Alum. Spur Foot & Rubber Pad |
Ladder Weight | 33 lbs. | 38 lbs. | 43 lbs. | 48 lbs. | 65 lbs. |
w/Cable Hooks • V-Rung | 35.2 lbs. | 40.2 lbs. | 45.2 lbs. | 50.2 lbs. | 67.4 lbs. |
w/Claw | 39.8 lbs. | 44.8 lbs. | 49.8 lbs. | 54.8 lbs. | |
w/Cable Hooks • V-Rung • AutoLeveler | 41.3 lbs. | 46.3 lbs. | 51.3 lbs. | 56.3 lbs. | 73.5 lbs. |
w/Claw • Auto-Leveler | 45.9 lbs. | 50.9 lbs. | 55.9 lbs. | 60.9 lbs. | |
Country of Origin | Assembled in the USA | Assembled in the USA | Assembled in the USA | Assembled in the USA | Assembled in the USA |
Warranty | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year |
